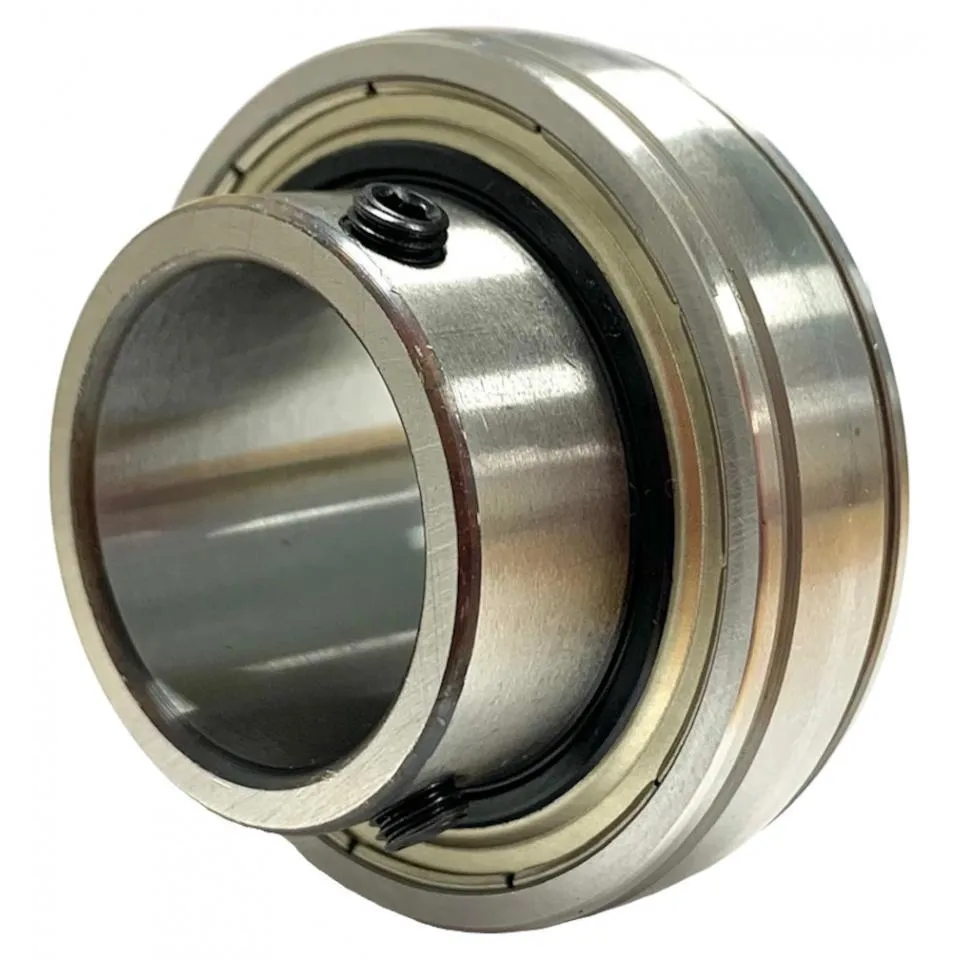

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation.

It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Accommodate static initial misalignment
Long service life
Reduce noise and vibration levels

Performance
Basic dynamic load rating25.5 kN
Basic static load rating15.3 kN
Limiting speed5 300 r/min

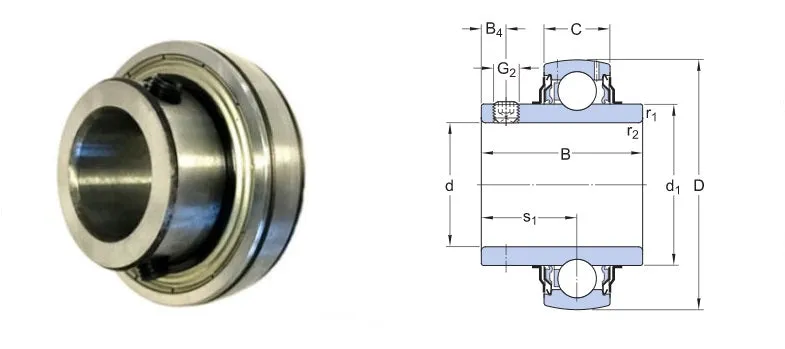

Dimensions:

Bore diameter 35 mm
Outside diameter 72 mm
Width, inner ring 42.9 mm
Width, outer ring 19 mm
Width, total 42.9 mm

Properties
Bore type: Cylindrical
Cage: Non-metallic
Coating: Without
Inner ring extension: On both sides
Lubricant: Grease
Material bearing: Bearing steel
Outer ring type: Spherical

Retaining feature,
inner ring: Set screws
Rolling elements: Balls
Rubber seating ring: Without
Sealing Seal and flinger on both sides
Contact: standard
