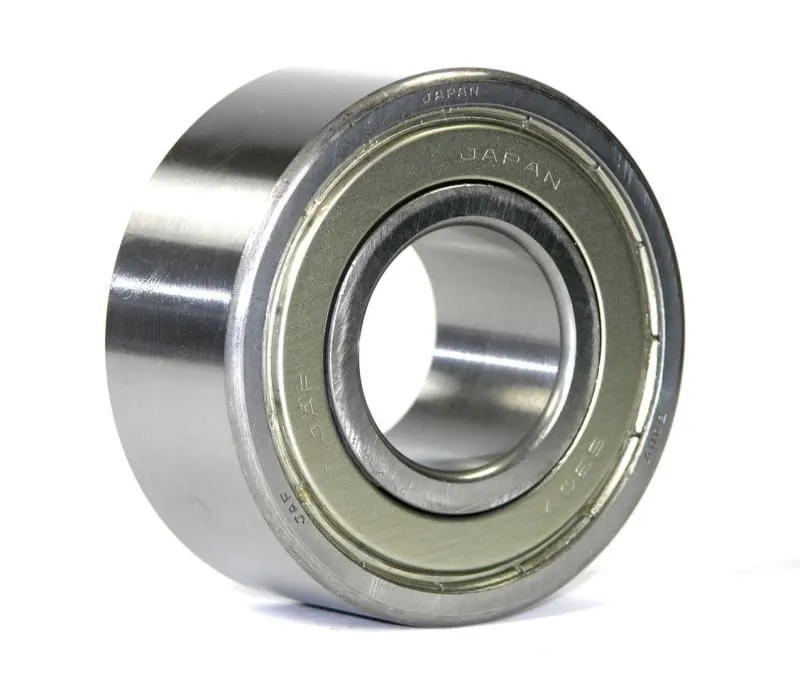

5308-ZZ, JAF/IJK/KYK Brand, 2-Row Angular Contact Shielded Ball Bearing (0324)

Name: 5308-ZZ, JAF/IJK/KYK Brand, 2-Row Angular Contact Shielded Ball Bearing (0324)
SKU: 539333

$ 59.15

$ 0.00

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Product Details

5308-ZZ, JAF, Made in Japan, 2-Row Angular Contact Ball Bearing Double-row angular contact ball bearing, supporting combined radial and bidirectional thrust loads Ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity Rubber seals on both sides of the bearing to keep lubricant in and contaminants out Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Lubrication: Polyrex EM Grease	Temp. Range (F): -40 Degrees to 350 Degrees
ABEC Tolerance: 1	Item: Angular Contact Ball Bearing
Type: Double Row	Cage Material: Polyamide
Dynamic Load Capacity (Lb.): 13,600	Bore Dia.: 40mm
	Max. RPM: 5,900
Width: 36.5mm	Static Load Capacity (Lb.): 9,850
Outside Dia.: 90mm	Country of Origin:: Japan Brand: JAF
